SOX Policies in Guardium Insights

Aug 1, 2021 sox privileged_user data_integrity guardium_insights policies

Author: John Haldeman

In our previous post we talked about SOX reporting. In this post we’ll discuss what a SOX policy might look like for similar requirements.

In that previous post we had a section about SOX requirements . For this post, let’s build a policy to meet the same requirements. That is to monitor changes performed by privileged users defined as follows:

Audit Definition	Description
Privileged Users	Any execution involving a source program, user, or client IP (or hostname) not associated with an application or batch service
Changes	DML and DDL

Definitions for our SOX example

Guardium policies work with rules that are evaluated sequentially according to criteria. If the criteria are met, a specified action is executed. For this requirement our criteria will be the definitions for privileged users and the commands involving changes (DML and DDL). Our action will be to either log the SQL or ignore the session entirely. There is an assumption here that that the number of SQL should be manageable because the application and batch traffic is filtered out.

Note: This example contains an ignore list. That means we will explicitly define what to ignore, and log everything else. This is obviously a good security practice, but it does mean that the administrators of the environment will have to keep on top of the ignore lists. The good news is, I have maintained those lists and, for even very large environments, it is not impossible or even difficult to do with the right kinds of processes in place. We will explore what that looks like in a different post. For now, let’s build the policy.

There are a lot of ways to model these same requirements in a Guardium policy. Let’s pick a common way to do this and use that as an example implementation. At the end of the post I’ll talk about a couple of alternatives.

Policy Outline: Ignore List with a Logging Rule Below It

In our implementation we’ll have one rule that describes the traffic we do not wish to log. It blocks execution of the rule following it which does log the traffic we want. It looks as follows:

1. If Source Program is associated with an application or batch service AND the DB User is as well AND so is the Client IP is too, ignore the traffic (alternatively log less using construct logging ¹). Stop evaluation or rules here.
2. If the command is DML or DDL, log the data

Note that we only get to rule 2 if we pass rule 1. Rule 1 defines the situations we wish to ignore

Before We Begin: Groups

In this tutorial we are going to need some groups. The groups define the nouns of the rule descriptions above. We’re going to use the same groups we created in our previous post of SOX reporting. You can find the instructions for doing so in the Groups section of that post.

Implementing the Policy in Guardium Insights

Now that we have an outline of what the policy should look like, let’s go step by step and create the policy in Guardium Insights. Before we go into the details, do note that policies in Guardium Insights only apply to the traffic captured directly inside Guardium Insights. Currently that’s only direct AWS Kinesis, Azure Event Hub, and Universal Connector feeds. Watch this space though in case the available feeds increases. That said, the policies in Guardium Insights are very well aligned with Guardium Data Protection, so what you see here you could also use in a more traditional Guardium environment.

The first step is to access the policy builder. Click on the Menu and then select Policies

Navigating to the Policy Editor: Menu --> Policies

Next, let’s click on the “Create a policy” button.

The 'Create a policy' button is to the right of the screen

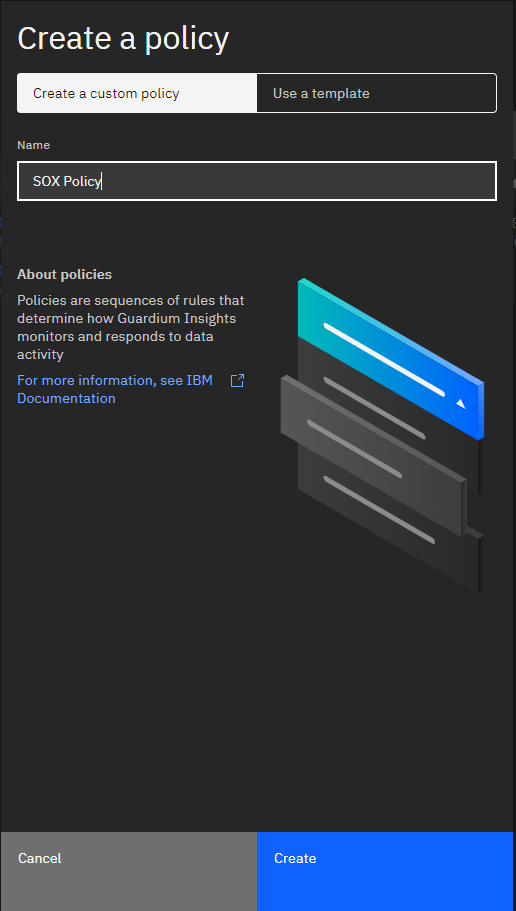

Next under “Create a custom policy” name the policy something like “SOX Policy” and click “Create” at the bottom of the screen.

Name the policy

This is the policy editor. On the left you have what are known as “Access rules”. These are the rules based on SQL executed or connections made to the databases you are monitoring. On the right are “Exception rules” which define actions on failed logins or SQL errors.

The policy editor

Let’s add our first rule - the one that defines what traffic we do not want to log that will prevent execution of our second rule.

Add an access rule

Our criteria for the rule defines what application and batch traffic looks like. In our requirements, that is traffic that is from an application server IP, a known application source program, and uses a known application database user. To do that, add three criteria to the rule using the groups we built for the reports (see the screenshot below). AND logic is applied inside Guardium policy rules. That is, all criteria must be satisfied to trigger the rule action. If you want to apply OR logic, you would need to create multiple rules.

Our first policy rule with the three criteria added

Next, we define the action to take. We have no other requirements for our simple example, so let’s choose the rule action that will result in the least performance impact in our environment - that is “Ignore Session”. If you’ve used Guardium for awhile, you’ll notice a lack of “Ignore STAP Session” rule. That’s because STAPs can’t report to Guardium Insights directly just yet.

IGNORE SESSION action with 'Stop evaluation' (ie: if the criteria is met, no further rules will be evaluated)

Click the Add button to add the rule to the interface. You can expand the rule to view its behavior at a glance once it is added.

Our first rule

Now, add another rule. This one just for DDL and DML statements with the action “Log Full Details”.

Log Full Details for DML and DDL

That’s our policy! Two rules to fulfill a simple requirement. Make sure you click the save button so that the policy is saved.

Our two-rule policy. Be sure to click save!

You may be wondering what happens in situations that meet neither rule’s criteria (for example: A DBA running a SELECT would meet neither rule’s criteria). People who know about Guardium know that it depends on what kind of policy this is - a non-selective audit trail or a selective audit trail. You may have noticed that there is no option to select what kind of policy this is in Guardium Insights. That’s because all policies in Guardium Insights are non-selective audit trails. These policies log constructs¹ when no rule is satisfied. If you’re translating a selective audit trail from traditional Guardium to Guardium Insights, you’ll have to change some of your rule actions and add a new rules to simulate a selective audit trail²:

The next step is to go back to the policy list and then install the policy we have created. Once at the policy list, click the “Manage policies” button in grey.

Click 'Manage policies'

We’ll deactivate the currently installed default policy and activate our new one. If you have multiple policies activated, this is also where you can specify the order by dragging the policies around.

Activating the SOX policy and deactivating the default one.

Now we just need to confirm policy installation.

Click confirm to apply the policy change.

That’s it! We’ve created our policy that reflects our requirements and installed it. Before we end though, let’s revisit our reporting with our policy in mind and also talk about other ways you may have implemented these requirements.

Revisiting Our Reports

I mentioned briefly in the post on SOX reporting that there would be some overlap in data between our three reports. That isn’t a compliance issue, but it is an efficiency issue. You may not want to spend the time reviewing the same records twice or even three times. One way to get around this is to build a more powerful query editor (which is hopefully on the way). While we wait for that, you can use what you know about the policy to make the reporting simpler. Our policy prevents the logging of SQL for the same DB Usernames, Source Programs, and Client IPs we filter out in the reporting. That makes those filters redundant, which means we can remove them and consolidate the reports into a single report (you would keep the filter to only show DML and DDL statements because you would log SELECTs with our policy as well - just not at the Full SQL level).

Now, if you have a more complicated policy that logs a lot of different things and only want to report on certain data logged by certain rules, a good trick is to make use of the “Rule Name” field and filter for the specific rule there (note, in Guardium Data Protection (GDP), this field is called “Access Rule Description”). This allows you to skip redoing all of the criteria that you have in your policy, inside your reports as well. Note though this will only work with reports built on the Full SQL Category (policy violations would also work if you alert or LOG ONLY).

Rule name - Handy if you want to filter data to a specific policy rule.

I have even occasionally had reports run a lot faster by filtering on this field instead of replicating criteria that exists in the rule, inside the report (well, in GDP at least and particularly when wildcards are involved).

Now let’s talk about some other ways you could implement these requirements in the policy. Below are two that come to mind:

Alternative Policy Approaches:

As promised at the beginning of the article, here are a couple of alternative policy designs that will fulfill this requirement.

Alternative 1: Split the ORs

Here we split each OR criterion into its own rule. This option would have a 3-rule policy that looks as follows:

1. If Source Program is NOT associated with an application or batch service, and the command is a DML or DDL statement, then log it
2. If DB User is NOT associated with an application or batch service, and the command is a DML or DDL statement, then log it
3. If Client IP is NOT associated with an application or batch server, and the command is a DML or DDL statement, then log it

This has the advantage of not having the ignore rule in the mix. Sometimes in more complicated situations you may not want interactions where one rule blocks another and in those instances, something like this makes more sense. You’ll notice that this alternative also looks a lot like how our reports where built. There’s something to be said about having a certain amount of policy-report symmetry (for example - if you log something and don’t have a report on it and a process to review the data, it’s a question to ask yourself if you should be logging it).

Alternative 2: Use Tuples

One could model these requirements using what’s known as 5 or 7-tuple criteria. These are concatenations of fields together separated by a ‘+’ delimiter. For example, a 5-tuple “Client IP/DB User/Source Program/Server IP/Service Name” type might have a tuple like 10.10.9.100+JOHN+APP1+10.10.9.101+ORADB1. Some people really like tuples because it gives them a lot of control. You can model our exact requirements with judicious use of wildcards (%) in the tuples (eg: to ignore all sessions with JOHN as the user, you could use the tuple %+JOHN+%+%+%). You could also specify full tuples without wildcards for specific situations that you want to make exceptions for.

Using tuples, you could actually condense our entire requirement into a single rule - which might be helpful if you have an already complicated policy.

All that said, tuples are not yet supported in Guardium Insights, so that decision is really more one for someone implementing things in GDP right now. Also reading a list of tuples and discerning behavior can be more difficult.

A Note on Templates

Before we end, I just wanted to take a moment and talk about templates. Guardium has always featured a large number of template definitions but, in my experience, they are very seldom used. It is interesting to think about “why”. In writing these two articles I think I have come up with a working theory. As we saw in the article on developing reports, there are many variations on what SOX compliance means. I think the variation stems from the many different definitions on the nouns in the requirements (the general themes are always about the same). Then you combine that variation with the many different ways of implementing a requirement. None of them are incorrect, but instead either more appropriate or less appropriate depending on the situation and the environment. All of that together makes every Guardium deployment somewhat unique, which has been my experience and the experience of many other practitioners that I have spoken to.

So, what’s the use of templates at all? Well, if you are alone, stuck, or just want to see how your approach compares to the template to help generate new questions for the auditors, they can be helpful. Just because they don’t get used very often or directly, doesn’t mean they are not helpful in some situations.

Next Steps

We’re not quite done with SOX yet. We have a working policy and report set for SOX requirements in Guardium Insights. In the next post we’ll see what we can do to try help make review of the data a little easier for our compliance team.

Conclusion

In this post we looked at how to implement a policy for some example SOX requirements. After that we discussed how reporting and policies can affect each other and help each other, looked at alternatives to the policy’s design, and discussed a theory on why templates may not be used often with Guardium.

---

1. Construct logging is a way of logging dramatically less data while avoiding ignoring the traffic entirely. It is appropriate in cases where you have a requirement to log application or batch SQL (connections (log ins/outs) are always logged). More details on construct logging will be presented in a future post. ↩︎

2. To translate Non-Selective Audit Trails to a Selective Audit Trails and keep the same behavior make the following modifications: 1) Create a “SKIP LOGGING” rule at the end of policy with no criteria. 2) Change all the actions of rules that have “ALLOW” actions and make them “SKIP LOGGING” instead and 3) Change all rules with “AUDIT ONLY” actions to “ALLOW”. ↩︎
